mall整合Swagger实现在线API文档

在前面两节课程中，我们学习了Swagger的基本使用，这一节就带大家把Swagger整合到我们的mall-tiny脚手架中去。

前置知识

在我们把Swagger整合到mall-tiny脚手架之前，我们得对Swagger有所了解，具体参考如下课程。

整合Swagger

首先在项目的pom.xml中添加Swagger的官方Starter；

<!--springfox swagger官方Starter-->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-boot-starter</artifactId>
    <version>${springfox-swagger.version}</version>
</dependency>

修改配置文件application.yml，主要修改Spring MVC的路径匹配策略，

spring:
  mvc:
    pathmatch:
      matching-strategy: ANT_PATH_MATCHER

添加Swagger的Java配置，主要配置Swagger生成API文档的包扫描路径及文档基本信息；

/**
 * @auther macrozheng
 * @description Swagger相关配置
 * @date 2022/11/23
 * @github https://github.com/macrozheng
 */
@Configuration
public class Swagger2Config {
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.macro.mall.tiny.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("SwaggerUI演示")
                .description("mall-tiny")
                .contact(new Contact("macro", null, null))
                .version("1.0")
                .build();
    }

    @Bean
    public static BeanPostProcessor springfoxHandlerProviderBeanPostProcessor() {
        return new BeanPostProcessor() {

            @Override
            public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
                if (bean instanceof WebMvcRequestHandlerProvider || bean instanceof WebFluxRequestHandlerProvider) {
                    customizeSpringfoxHandlerMappings(getHandlerMappings(bean));
                }
                return bean;
            }

            private <T extends RequestMappingInfoHandlerMapping> void customizeSpringfoxHandlerMappings(List<T> mappings) {
                List<T> copy = mappings.stream()
                        .filter(mapping -> mapping.getPatternParser() == null)
                        .collect(Collectors.toList());
                mappings.clear();
                mappings.addAll(copy);
            }

            @SuppressWarnings("unchecked")
            private List<RequestMappingInfoHandlerMapping> getHandlerMappings(Object bean) {
                try {
                    Field field = ReflectionUtils.findField(bean.getClass(), "handlerMappings");
                    field.setAccessible(true);
                    return (List<RequestMappingInfoHandlerMapping>) field.get(bean);
                } catch (IllegalArgumentException | IllegalAccessException e) {
                    throw new IllegalStateException(e);
                }
            }
        };
    }

}

在原有的品牌管理Controller添加上Swagger相关注解；

/**
 * @auther macrozheng
 * @description 品牌管理Controller
 * @date 2019/4/19
 * @github https://github.com/macrozheng
 */
@Controller
@Api(tags = "PmsBrandController")
@Tag(name = "PmsBrandController", description = "商品品牌管理")
@RequestMapping("/brand")
public class PmsBrandController {
    @Autowired
    private PmsBrandService brandService;

    private static final Logger LOGGER = LoggerFactory.getLogger(PmsBrandController.class);

    @ApiOperation("获取所有品牌列表")
    @RequestMapping(value = "listAll", method = RequestMethod.GET)
    @ResponseBody
    public CommonResult<List<PmsBrand>> getBrandList() {
        return CommonResult.success(brandService.listAllBrand());
    }

    @ApiOperation("添加品牌")
    @RequestMapping(value = "/create", method = RequestMethod.POST)
    @ResponseBody
    public CommonResult createBrand(@RequestBody PmsBrand pmsBrand) {
        CommonResult commonResult;
        int count = brandService.createBrand(pmsBrand);
        if (count == 1) {
            commonResult = CommonResult.success(pmsBrand);
            LOGGER.debug("createBrand success:{}", pmsBrand);
        } else {
            commonResult = CommonResult.failed("操作失败");
            LOGGER.debug("createBrand failed:{}", pmsBrand);
        }
        return commonResult;
    }

    @ApiOperation("更新指定id品牌信息")
    @RequestMapping(value = "/update/{id}", method = RequestMethod.POST)
    @ResponseBody
    public CommonResult updateBrand(@PathVariable("id") Long id, @RequestBody PmsBrand pmsBrandDto, BindingResult result) {
        CommonResult commonResult;
        int count = brandService.updateBrand(id, pmsBrandDto);
        if (count == 1) {
            commonResult = CommonResult.success(pmsBrandDto);
            LOGGER.debug("updateBrand success:{}", pmsBrandDto);
        } else {
            commonResult = CommonResult.failed("操作失败");
            LOGGER.debug("updateBrand failed:{}", pmsBrandDto);
        }
        return commonResult;
    }

    @ApiOperation("删除指定id的品牌")
    @RequestMapping(value = "/delete/{id}", method = RequestMethod.GET)
    @ResponseBody
    public CommonResult deleteBrand(@PathVariable("id") Long id) {
        int count = brandService.deleteBrand(id);
        if (count == 1) {
            LOGGER.debug("deleteBrand success :id={}", id);
            return CommonResult.success(null);
        } else {
            LOGGER.debug("deleteBrand failed :id={}", id);
            return CommonResult.failed("操作失败");
        }
    }

    @ApiOperation("分页查询品牌列表")
    @RequestMapping(value = "/list", method = RequestMethod.GET)
    @ResponseBody
    public CommonResult<CommonPage<PmsBrand>> listBrand(@RequestParam(value = "pageNum", defaultValue = "1")
                                                        @ApiParam("页码") Integer pageNum,
                                                        @RequestParam(value = "pageSize", defaultValue = "3")
                                                        @ApiParam("每页数量") Integer pageSize) {
        List<PmsBrand> brandList = brandService.listBrand(pageNum, pageSize);
        return CommonResult.success(CommonPage.restPage(brandList));
    }

    @ApiOperation("获取指定id的品牌详情")
    @RequestMapping(value = "/{id}", method = RequestMethod.GET)
    @ResponseBody
    public CommonResult<PmsBrand> brand(@PathVariable("id") Long id) {
        return CommonResult.success(brandService.getBrand(id));
    }
}

修改MBG实体类的代码生成规则，CommentGenerator为MBG的自定义注释生成器，修改addFieldComment方法使其生成Swagger的@ApiModelProperty注解来取代原来的方法注释，添加addJavaFileComment方法，使其能在import中导入@ApiModelProperty。

/**
 * 自定义注释生成器
 * Created by macro on 2018/4/26.
 */
public class CommentGenerator extends DefaultCommentGenerator {
    private boolean addRemarkComments = false;
    private static final String EXAMPLE_SUFFIX="Example";
    private static final String MAPPER_SUFFIX="Mapper";
    private static final String API_MODEL_PROPERTY_FULL_CLASS_NAME="io.swagger.annotations.ApiModelProperty";

    /**
     * 设置用户配置的参数
     */
    @Override
    public void addConfigurationProperties(Properties properties) {
        super.addConfigurationProperties(properties);
        this.addRemarkComments = StringUtility.isTrue(properties.getProperty("addRemarkComments"));
    }

    /**
     * 给字段添加注释
     */
    @Override
    public void addFieldComment(Field field, IntrospectedTable introspectedTable,
                                IntrospectedColumn introspectedColumn) {
        String remarks = introspectedColumn.getRemarks();
        //根据参数和备注信息判断是否添加swagger注解信息
        if(addRemarkComments&&StringUtility.stringHasValue(remarks)){
//            addFieldJavaDoc(field, remarks);
            //数据库中特殊字符需要转义
            if(remarks.contains("\"")){
                remarks = remarks.replace("\"","'");
            }
            //给model的字段添加swagger注解
            field.addJavaDocLine("@ApiModelProperty(value = \""+remarks+"\")");
        }
    }

    /**
     * 给model的字段添加注释
     */
    private void addFieldJavaDoc(Field field, String remarks) {
        //文档注释开始
        field.addJavaDocLine("/**");
        //获取数据库字段的备注信息
        String[] remarkLines = remarks.split(System.getProperty("line.separator"));
        for(String remarkLine:remarkLines){
            field.addJavaDocLine(" * "+remarkLine);
        }
        addJavadocTag(field, false);
        field.addJavaDocLine(" */");
    }

    @Override
    public void addJavaFileComment(CompilationUnit compilationUnit) {
        super.addJavaFileComment(compilationUnit);
        //只在model中添加swagger注解类的导入
        if(!compilationUnit.getType().getFullyQualifiedName().contains(MAPPER_SUFFIX)&&!compilationUnit.getType().getFullyQualifiedName().contains(EXAMPLE_SUFFIX)){
            compilationUnit.addImportedType(new FullyQualifiedJavaType(API_MODEL_PROPERTY_FULL_CLASS_NAME));
        }
    }
}

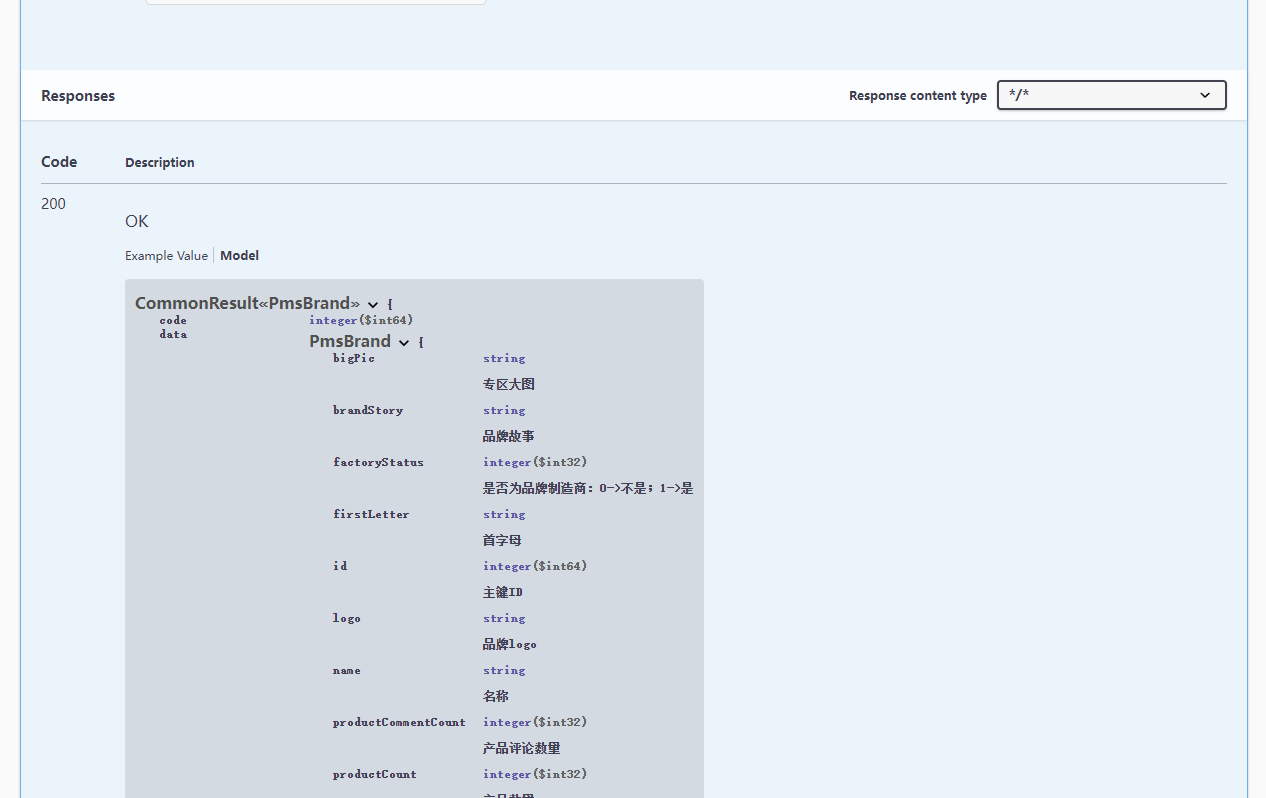

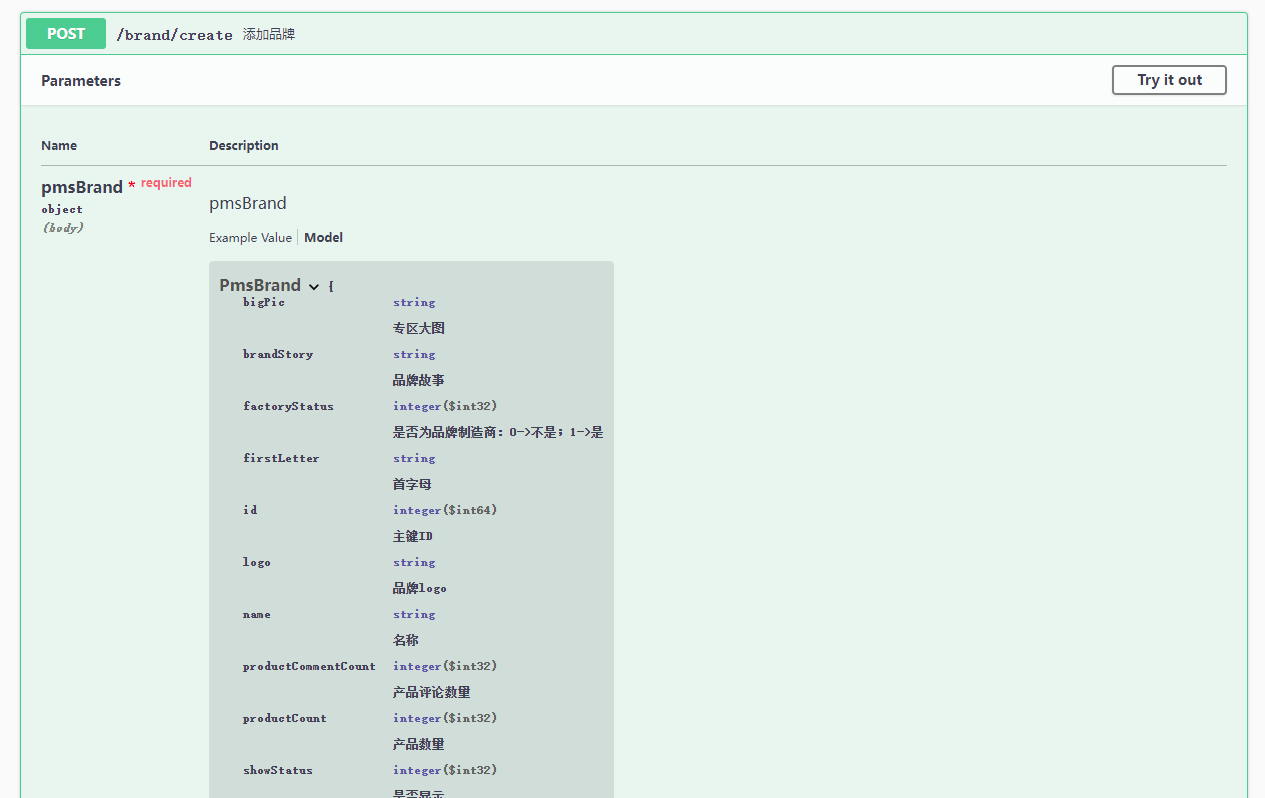

运行Generator类的main方法，重新生成mbg中的代码，可以看到PmsBrand类中已经自动根据数据库注释添加了@ApiModelProperty注解；

public class PmsBrand implements Serializable {
    @ApiModelProperty(value = "主键ID")
    private Long id;

    @ApiModelProperty(value = "名称")
    private String name;

    @ApiModelProperty(value = "首字母")
    private String firstLetter;

    @ApiModelProperty(value = "排序")
    private Integer sort;

    @ApiModelProperty(value = "是否为品牌制造商：0->不是；1->是")
    private Integer factoryStatus;

    @ApiModelProperty(value = "是否显示")
    private Integer showStatus;

    @ApiModelProperty(value = "产品数量")
    private Integer productCount;

    @ApiModelProperty(value = "产品评论数量")
    private Integer productCommentCount;

    @ApiModelProperty(value = "品牌logo")
    private String logo;

    @ApiModelProperty(value = "专区大图")
    private String bigPic;

    @ApiModelProperty(value = "品牌故事")
    private String brandStory;
}
